Customizable Optional Base Axial Flow Fan for Your Specific Requirements

Name: Customizable Optional Base Axial Flow Fan for Your Specific Requirements
Brand: SHUANGYI
Price: 230.00 USD

China Customizable Optional Base Axial Flow Fan for Your Specific Requirements wholesale

Type : Axial Flow Fan

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Electric Current Type : AC

Mounting : FREE STANDING

Blade Material : FRP/GRP

Place of Origin : Shandong, China

Brand Name : SHUANGYI

Model Number : axial fan

Voltage : 380V ,50HZ or others

Warranty : 1 Year

After-sales Service Provided : Online support

Size : 400/500/600/800/1000mm

Purification : 10-20

Type of drive : Motor direct drive

Angle : as your request

color : any color are avialable

model : axial flow fan/axial ventilator/axial blower

type : axial flow

Material : FRP

motor : explosion proof

base : optional

Certification : CE, CCC

Packaging Details : Plywood Case with Steel Frame, or as customer's request

Port : Qingdao

Supply Ability : 3000 Piece/Pieces per Month

MOQ : 1 PC

Price : $230.00 - $1,500.00/pieces

Contact Now

Popular Axial Flow Exhaust Fan

Customizable Optional Base Axial Flow Fan for Your Specific Requirements

1.High air volume,Stable and reliable

2. Low noise, good looking

3.Simple structure,easy to assemble and disassemble.

4. Difference impeller angle can be choose based your needed, 15, 20, 25,30,35

5.Widely application

Model No.	Rotating Speed r/min	Air Flow m3/h	Total Pressure Pa	Motor Power kw
2.8	2900	2838	176	0.25
		2912	184	0.25
		3068	196	0.25
	1450	1419	44	0.04
		1456	46	0.04
		1534	49	0.04
3.15	2900	4040	224	0.37
		4146	232	0.55
		4368	246	0.55
	1450	2020	56	0.06
		2073	58	0.06
		2184	62	0.06
3.55	2900	5782	284	0.75
		5934	296	0.75
		6252	316	1.1
	1450	2891	71	0.09
		2967	74	0.09
		3126	79	0.12

Customized specs is available!

Customizable Optional Base Axial Flow Fan for Your Specific Requirements

Packaging & Shipping

1.Standard exporting package

2.customized packaging

Customizable Optional Base Axial Flow Fan for Your Specific Requirements

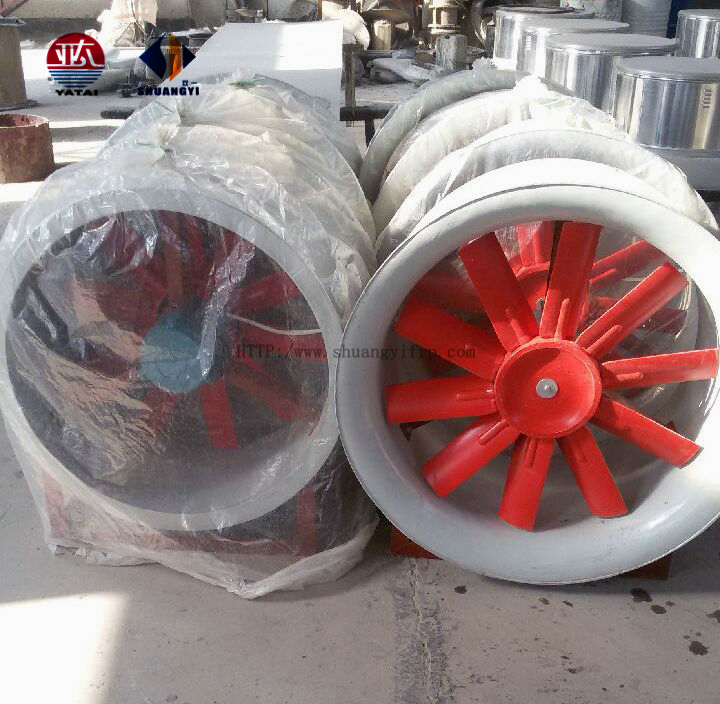

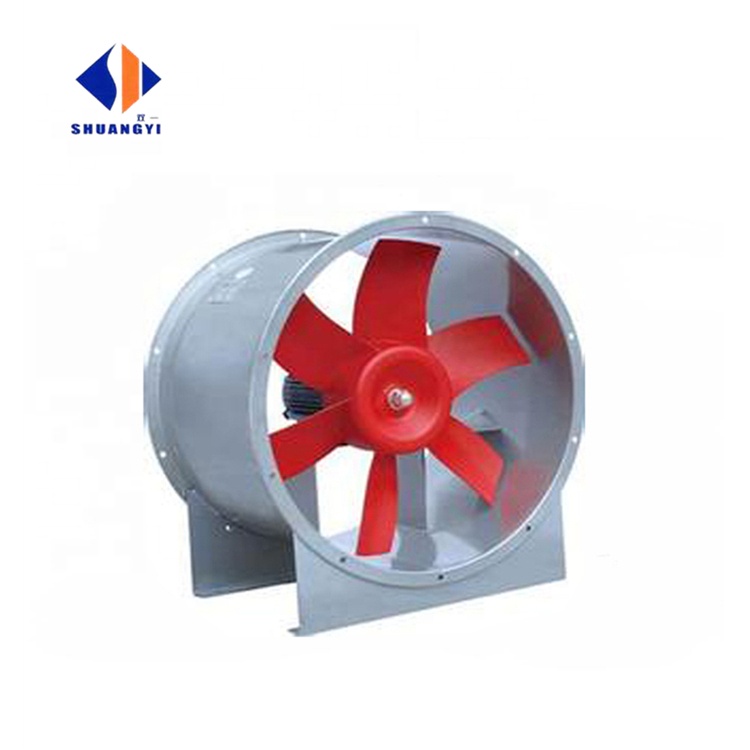

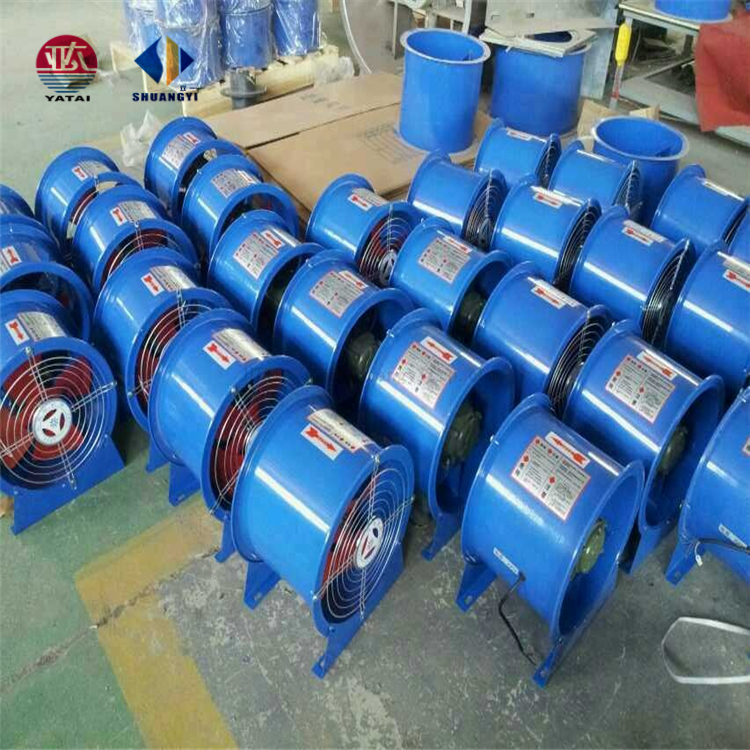

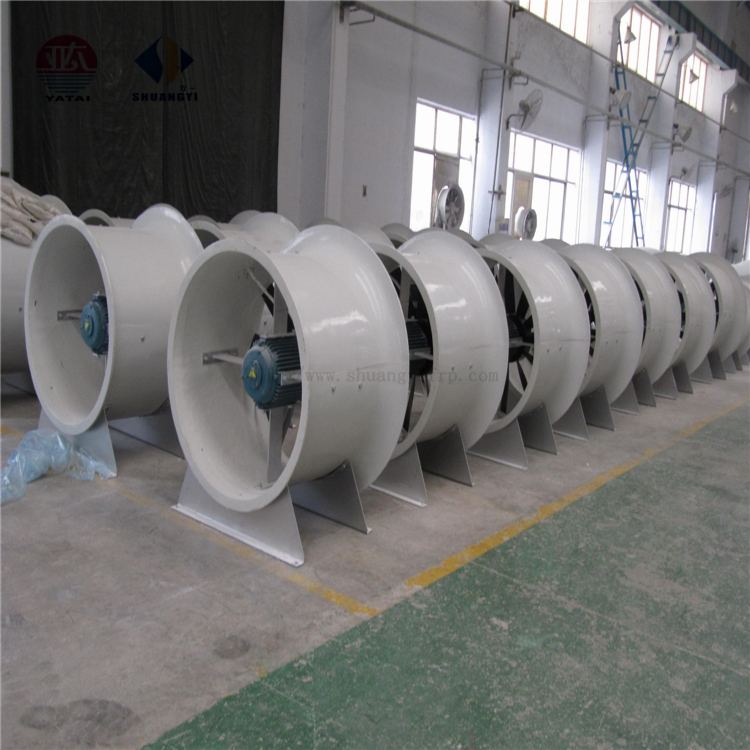

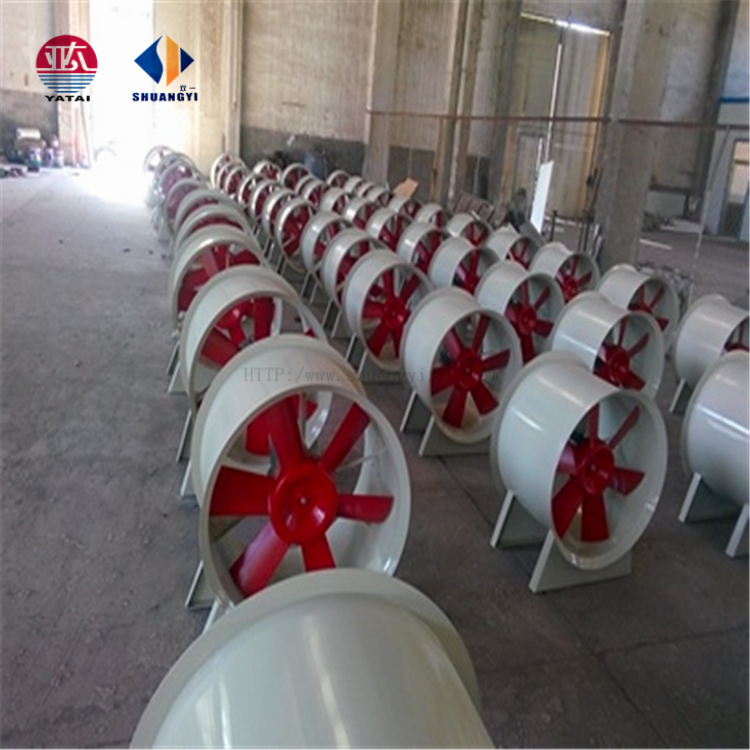

Customizable Optional Base Axial Flow Fan for Your Specific Requirements Images
